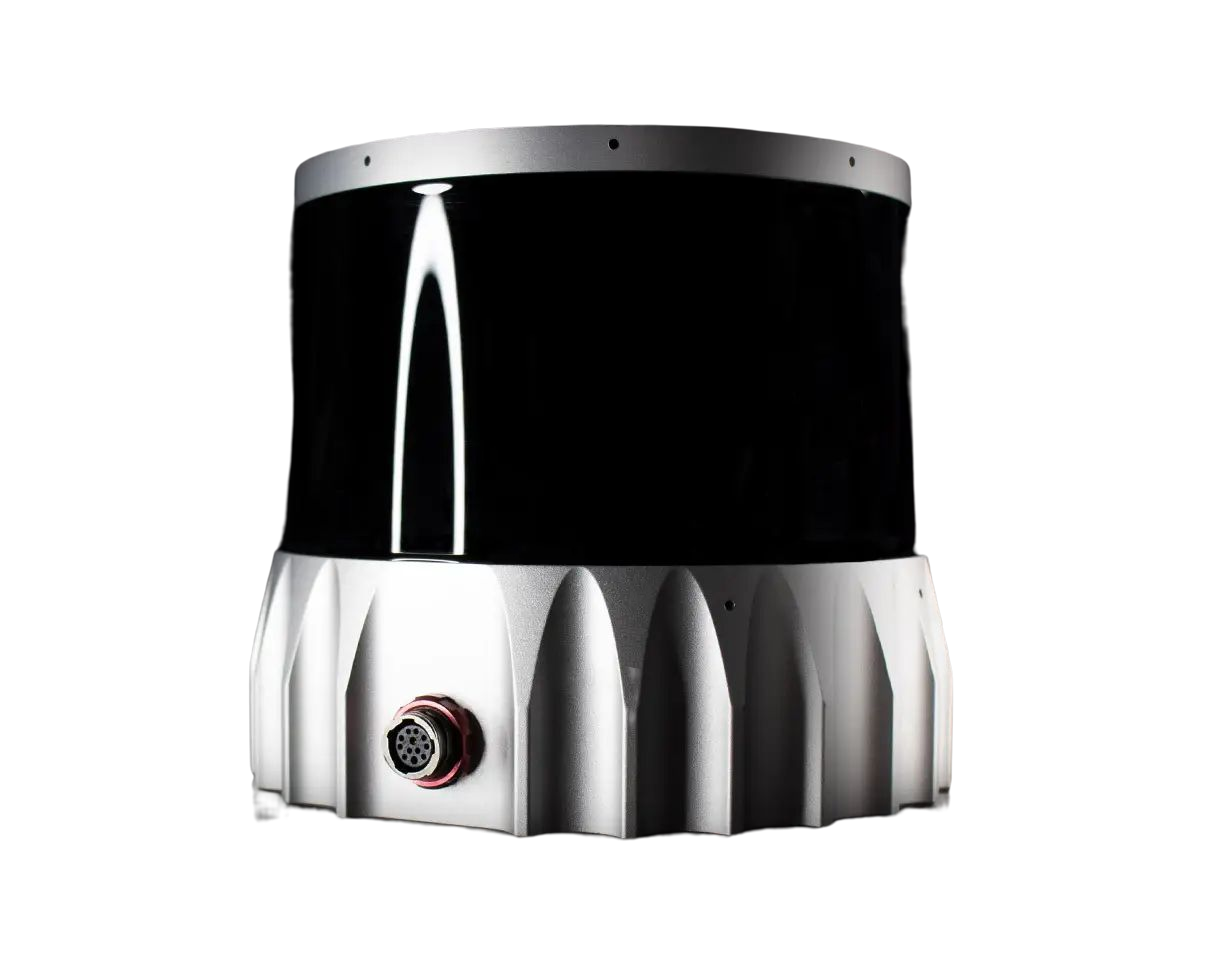

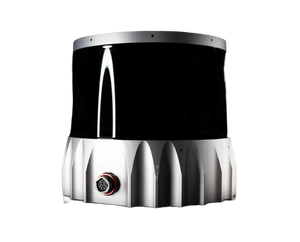

OS2-64

LONG-RANGE LIDAR SENSOR

200+ meter range

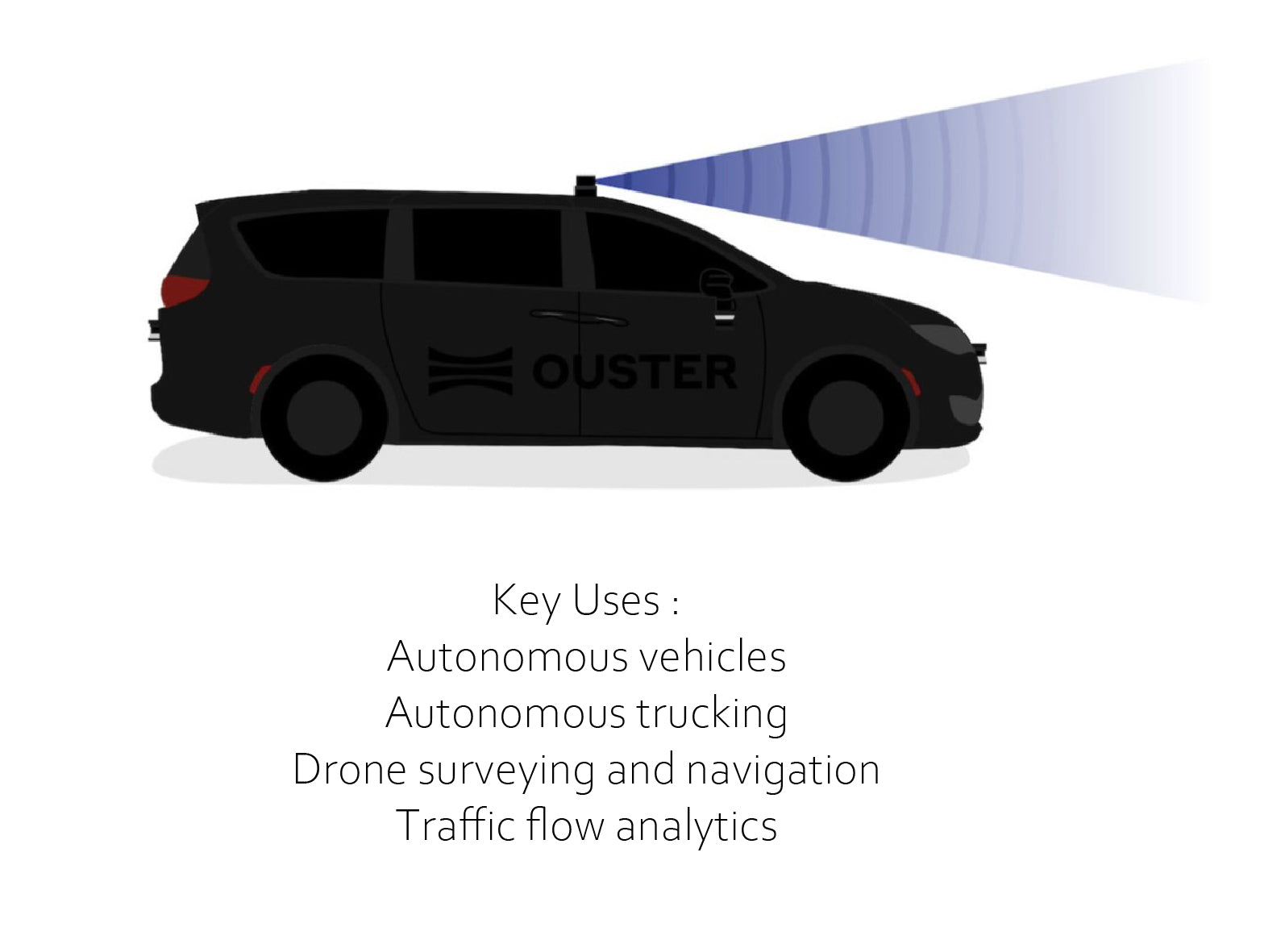

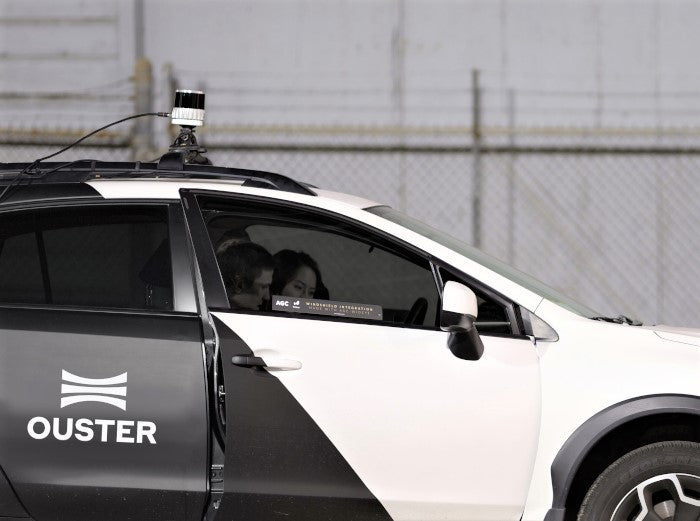

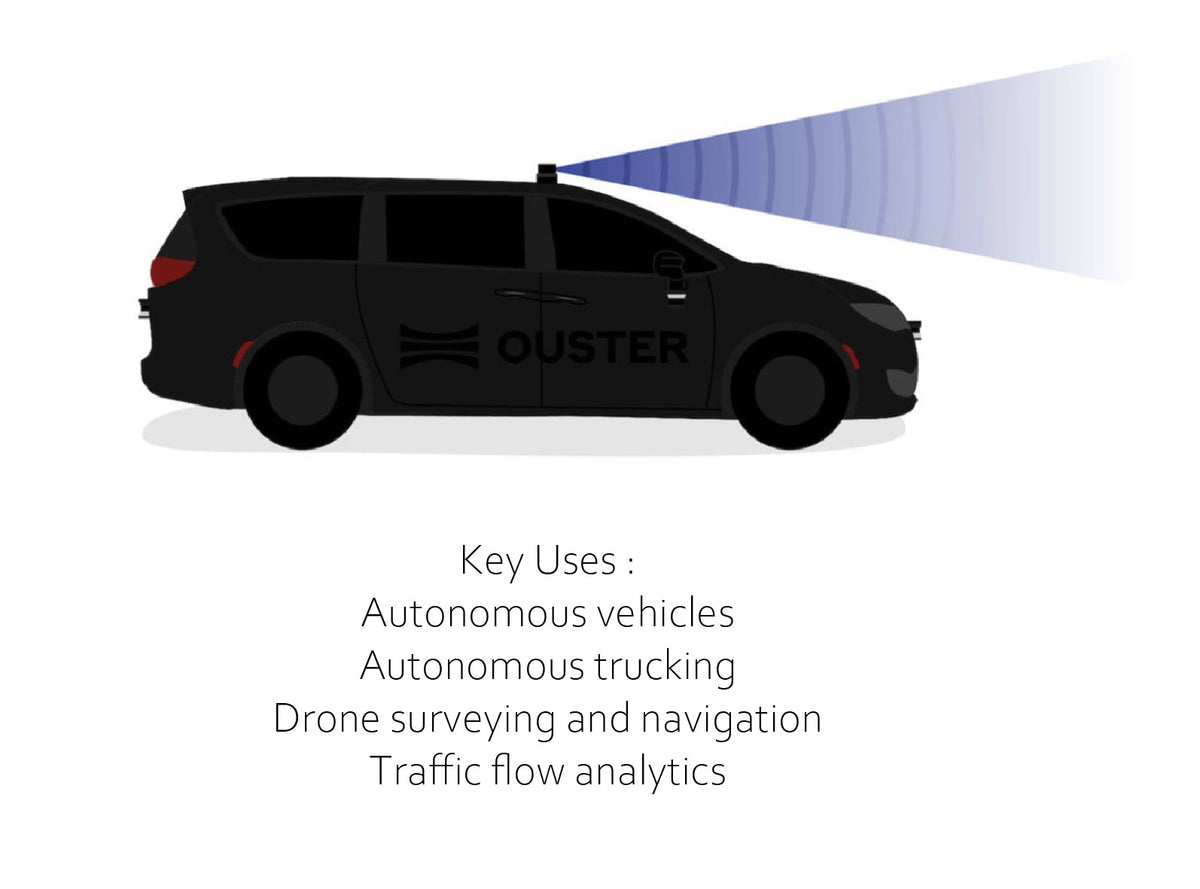

● The OS2 delivers long-range, high-resolution 3D sensing. Engineered for performance. See farther with the long-range OS2 lidar sensor. Fit for highway-speed autonomy and high-altitude drones.

High resolution

● With 128 vertical beams, Ouster lidar sensors offer the highest resolution available for superior object identification.

Long-range vision

● Maintain ample time to react to obstacles and hazards, even at high speeds, with the OS2’s 240 m range.

Multi-lane traffic analytics

● The OS2’s high-resolution, 240 m range can track vehicles across multiple lanes, between large intersections, and on freeways, providing enhanced traffic flow and speed data on a lane-by-lane basis.

Rugged and reliable

● Ouster lidar sensors are designed for 100,000 hours of continuous use. Water-proof, robust to shock and vibration, and temperature rated from -20 ºC to +64 ºC.

Features of the OS2

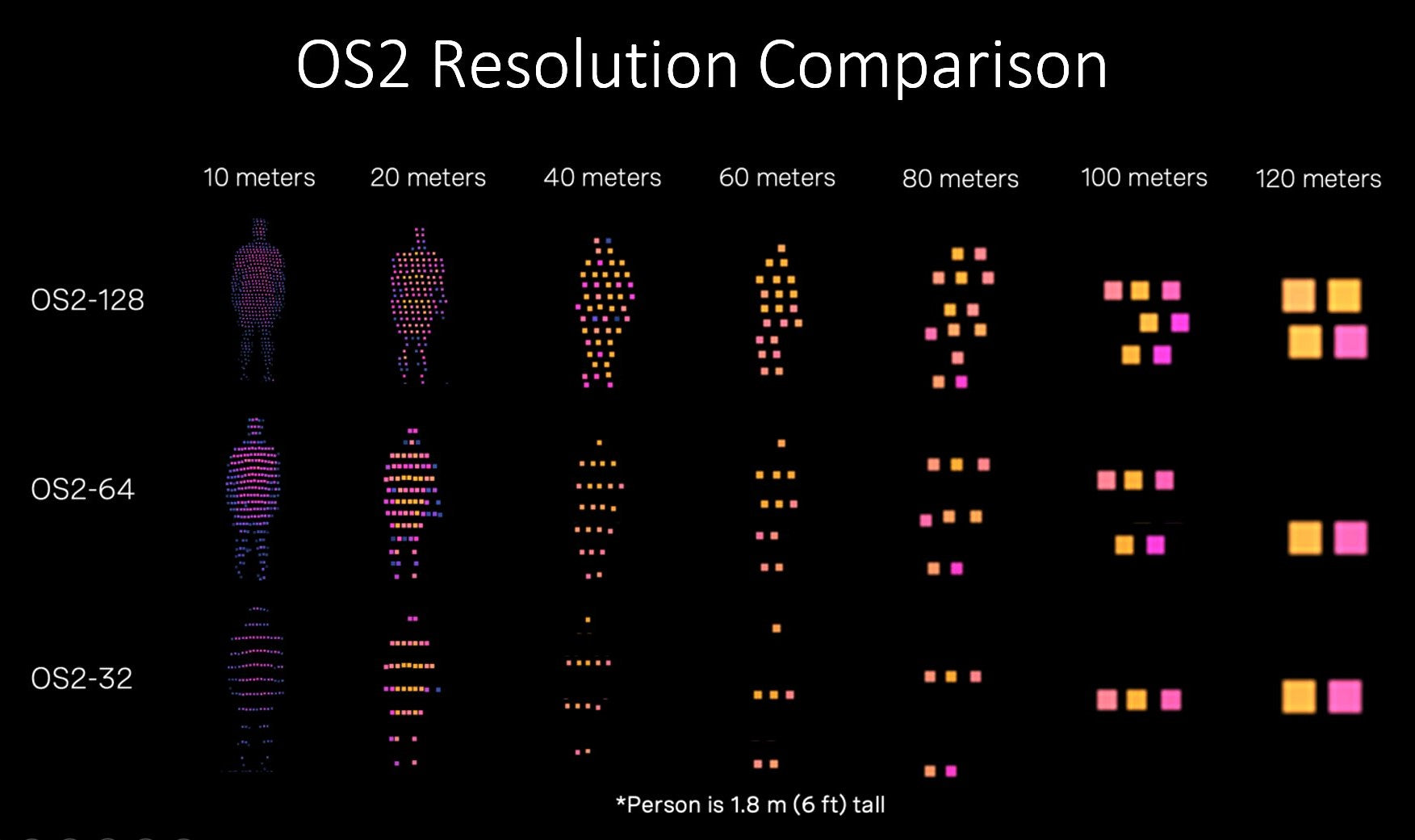

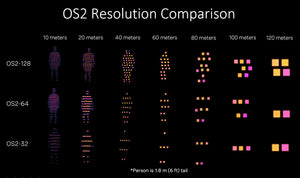

● VERTICAL RESOLUTION
   OS2-32 : 32 channels
   OS2-64 : 64 channels
   OS2-128 : 128 channels

● HORIZONTAL RESOLUTION
   512, 1024, 2048

● RANGE
   240m

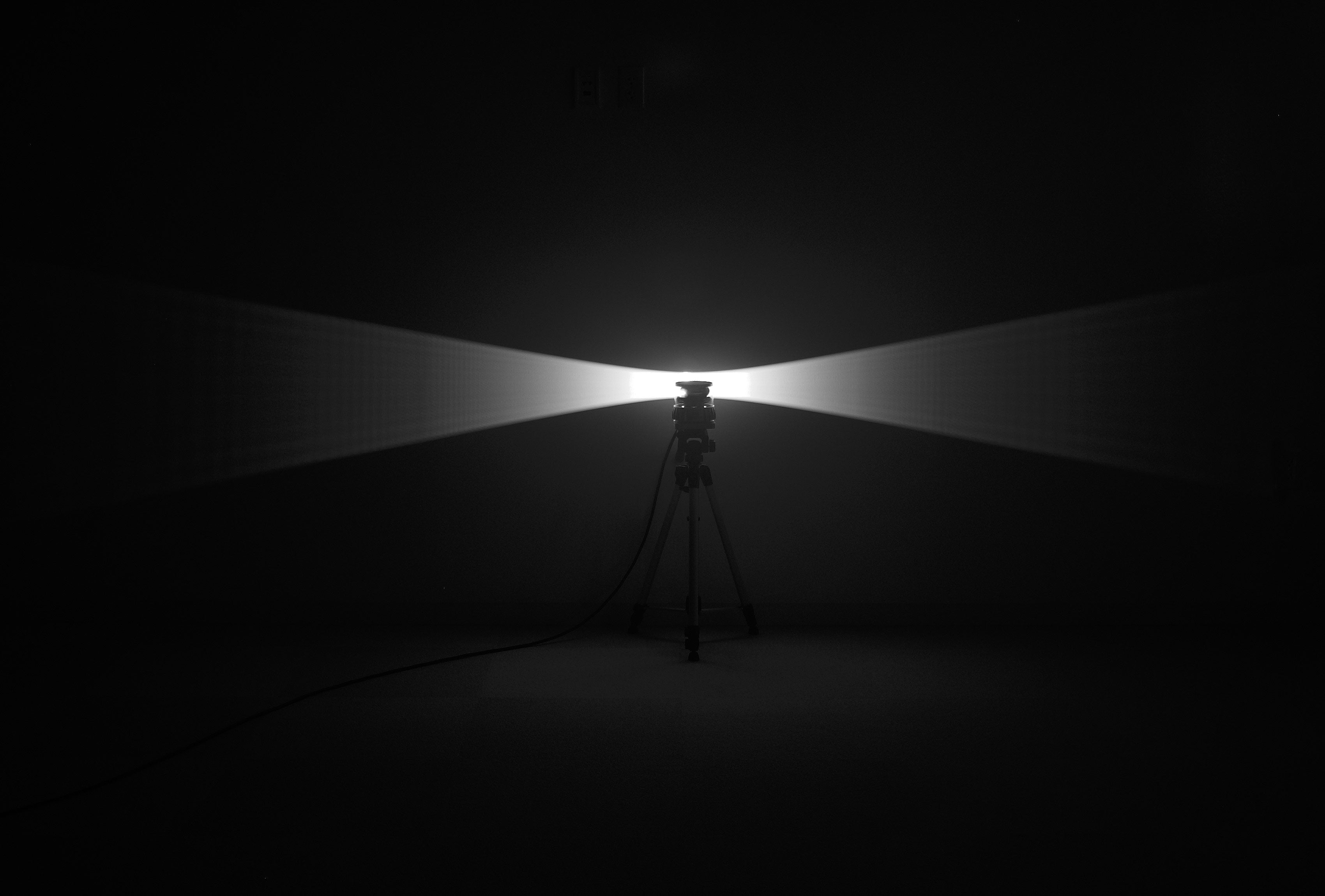

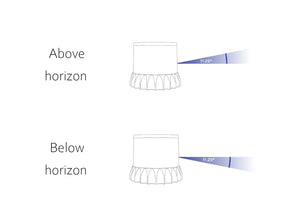

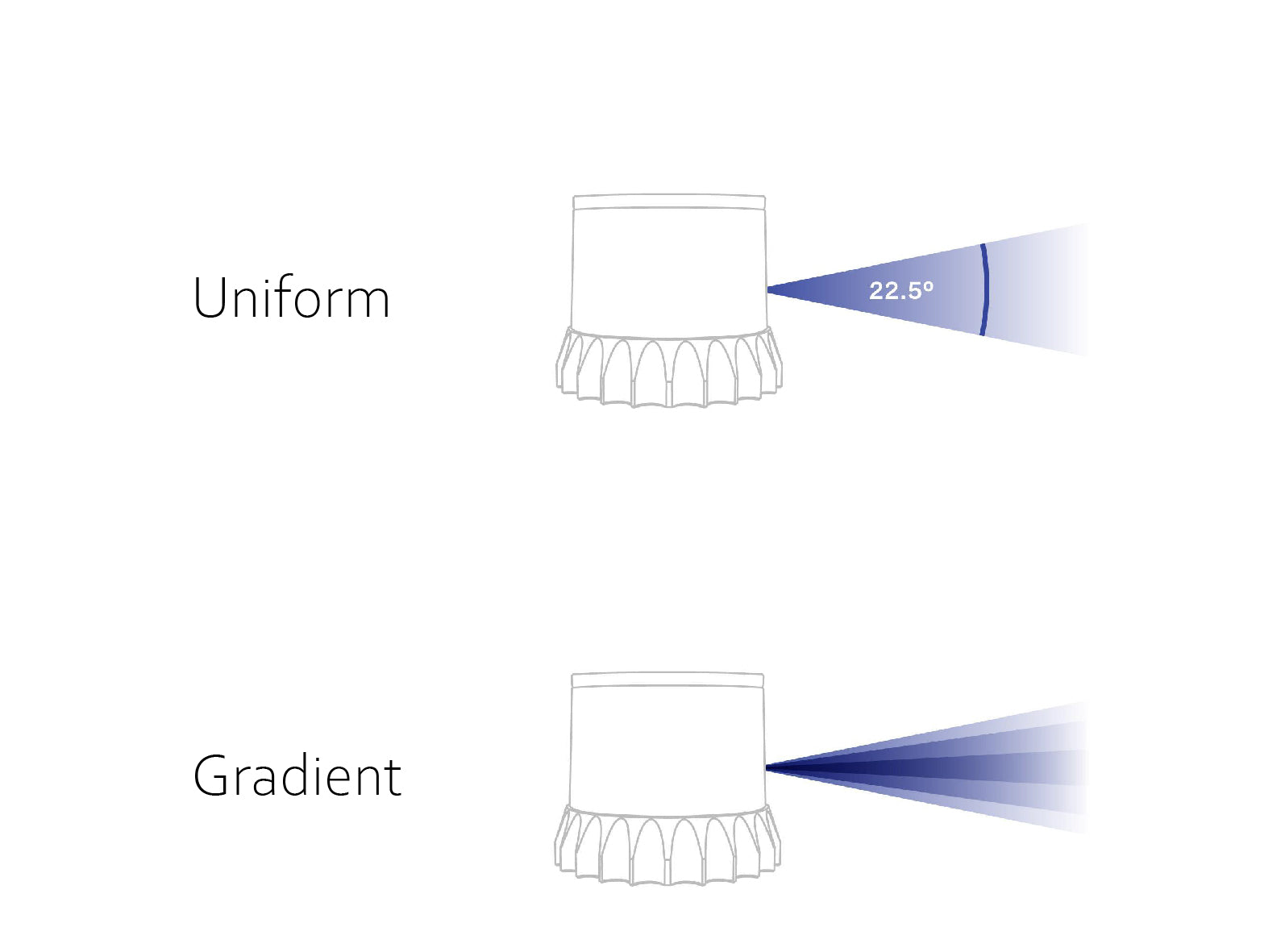

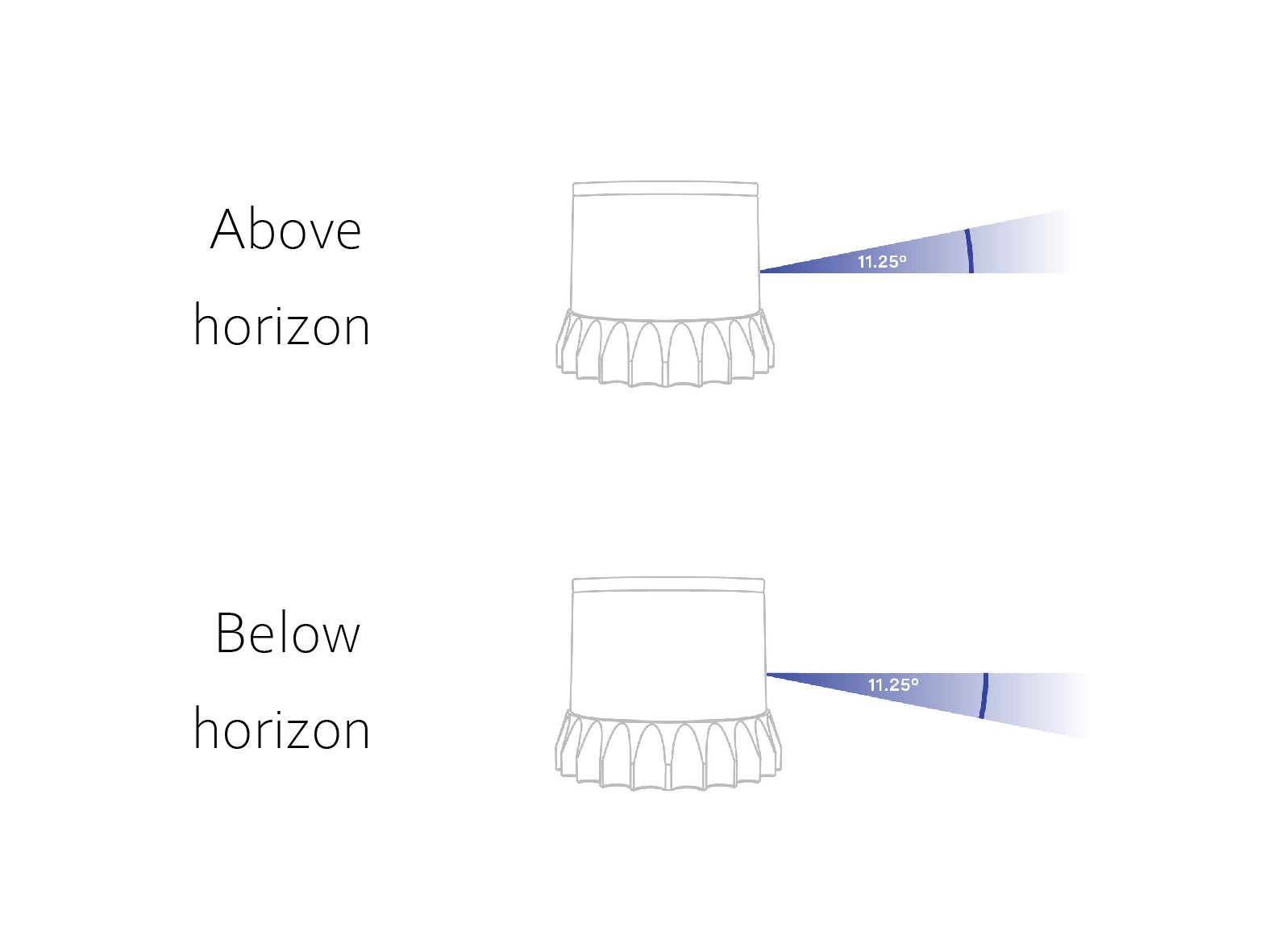

● VERTICAL FIELD OF VIEW
   22.5° (±11.25º)

● VERTICAL ANGULAR RESOLUTION
   0.18º – 0.73º (multiple options)
   OS2-128 : 0.18º

● PRECISION
   ±2.5 – 8 cm

● POINTS PER SECOND
   OS2-32 : 655,360
   OS2-64 : 1,310,720
   OS2-128 : 2,621,440

● ROTATION RATE
   10 or 20 Hz

● POWER DRAW
   18 – 24 W
   OS2-128 : 14 – 20 W

● WEIGHT
   1100 g

● INGRESS PROTECTION RATING
   IP68 (<1 m water submersion)
   IP69K (2000 psi power washing)
