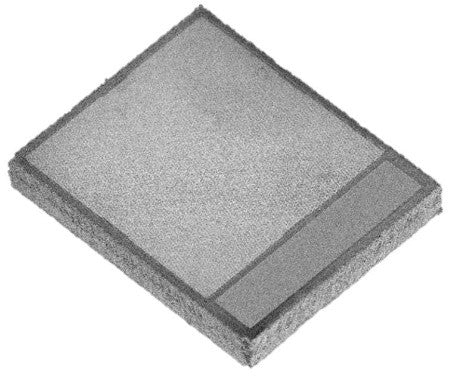

EZ7591-P bar

FEATURES:

• Lambertian Radiation Pattern
• Anode-up design (p-pad up)
• EZBright LED Technology (1.0 mA)
  • 450 nm – 1400+ mW
  • 460 nm – 1400+ mW

• Forward Voltage (Vf) – 3.26 V Typical (1.0 A)
• Maximum DC Forward Current – 1625 mA
• Backside Metal options:
  • AuSn for Flux Eutectic Attach, Conductive Adhesives, Solder Paste and Solder Preforms
  • LTDA for Low Temperature Flux Eutectic Attach
• 250 V, Class 1A ESD Rating
