OS1-32

MID-RANGE LIDAR SENSOR

High resolution

● At 128 vertical beams, Ouster lidar sensors offer the highest resolution available for superior object identification.

Urban perception and localization

● Confidently navigate through urban hills or the busiest downtown intersections with the OS1’s 45º vertical field-of-view and 120 m range.

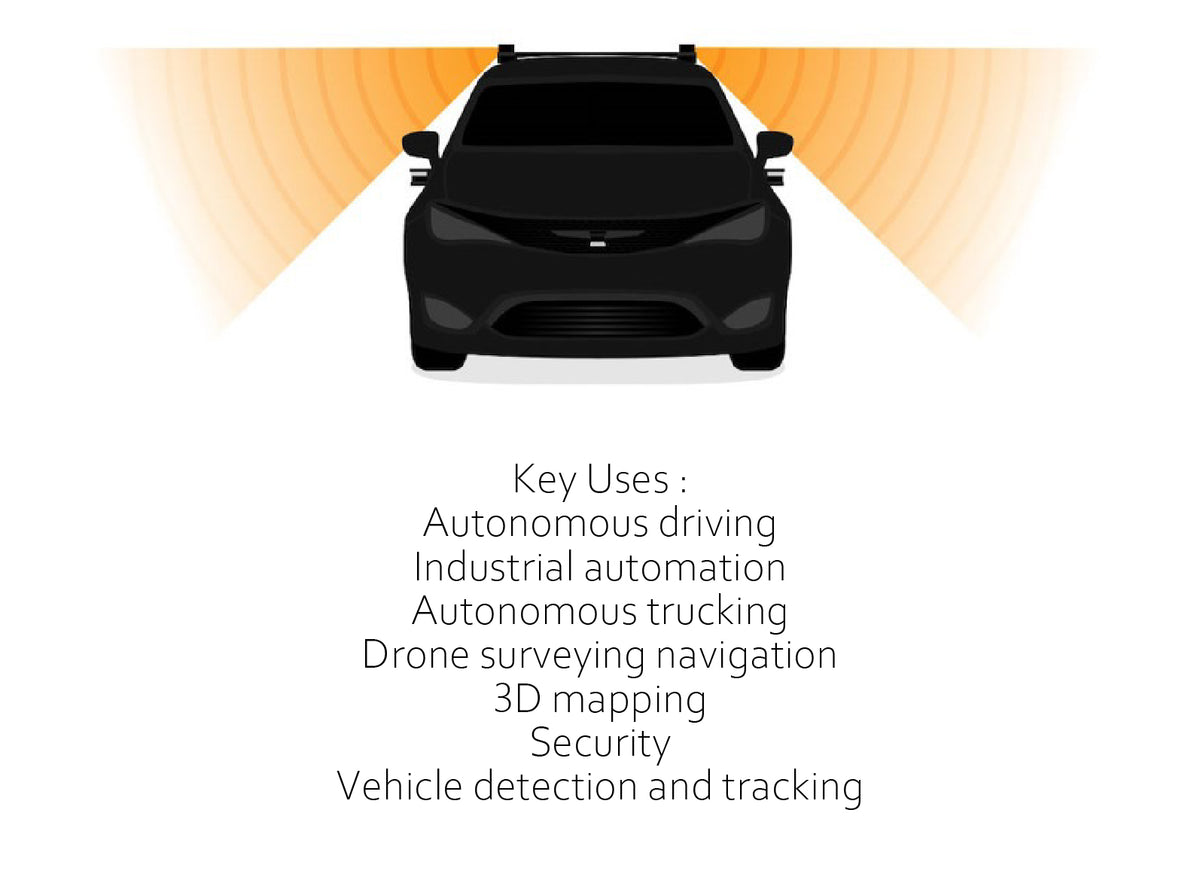

Vehicle detection and tracking

● The OS1's 45º vertical field-of-view and 120 m range provide complete coverage of major intersections and track vehicles' speed and positions to enable stop bar and dilemma zone detection.

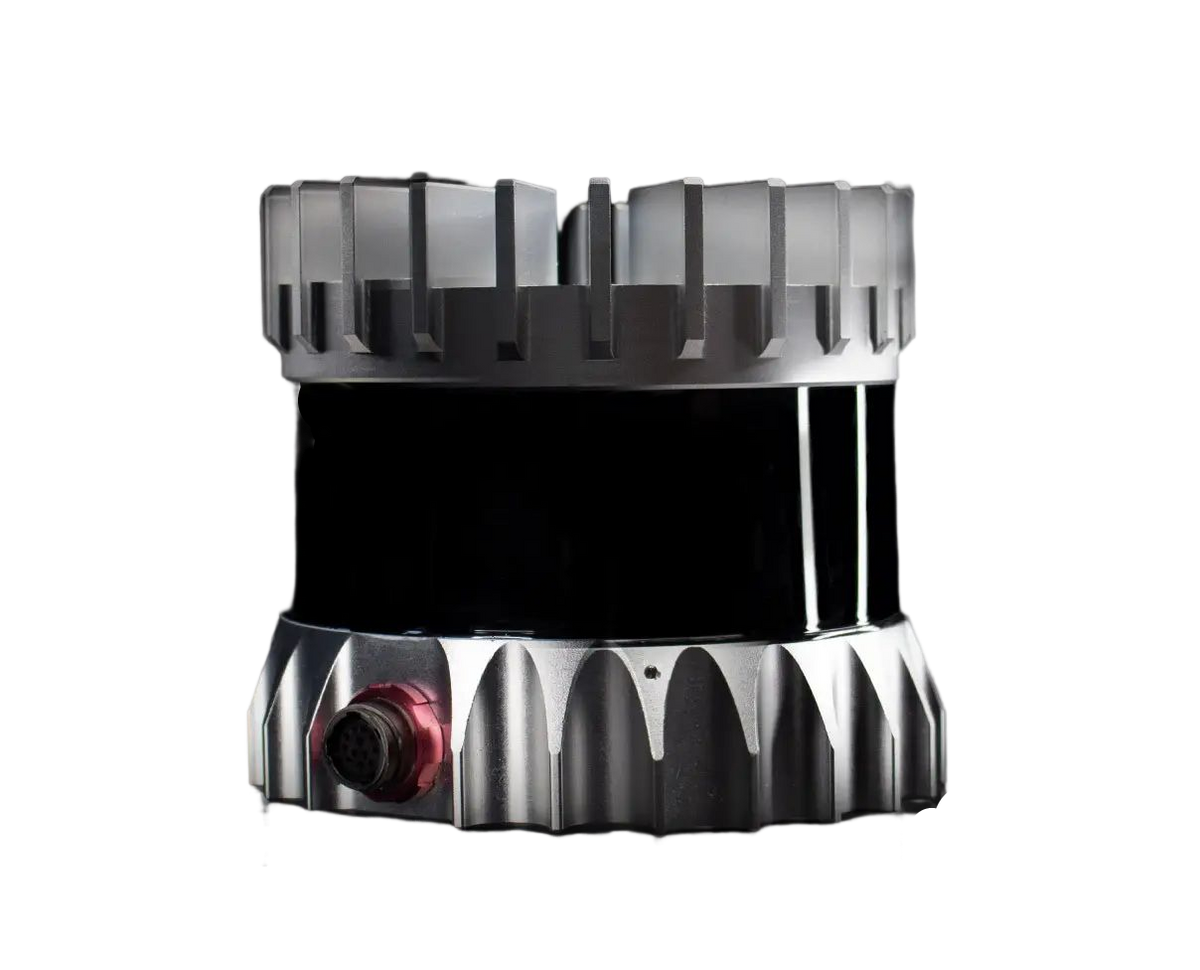

Lightweight modular design

● Weighing only 447 g and featuring a modular cap design, this lidar sensor seamlessly integrates into your vehicle, drone, or robot.

Rugged and reliable

● Ouster lidar sensors are designed for 100,000 hours of continuous use. Water-proof, robust to shock and vibration, and temperature rated from -40 ºC to +60 ºC.

Features of the OS1

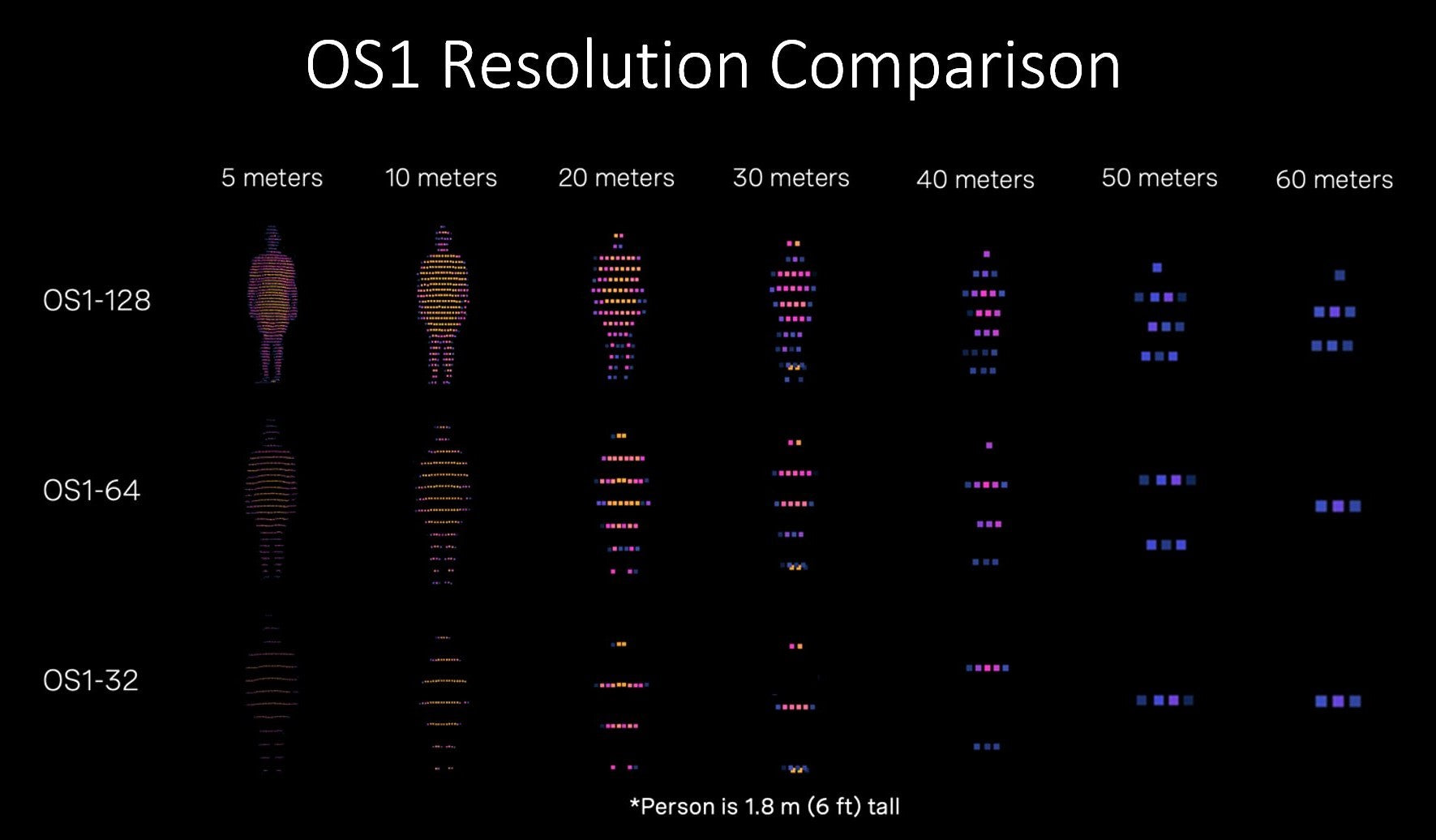

● VERTICAL RESOLUTION
  OS1-32 : 32 channels
  OS1-64 : 64 channels
  OS1-128 : 128 channels

● HORIZONTAL RESOLUTION
   512, 1024, 2048

● RANGE
   120m

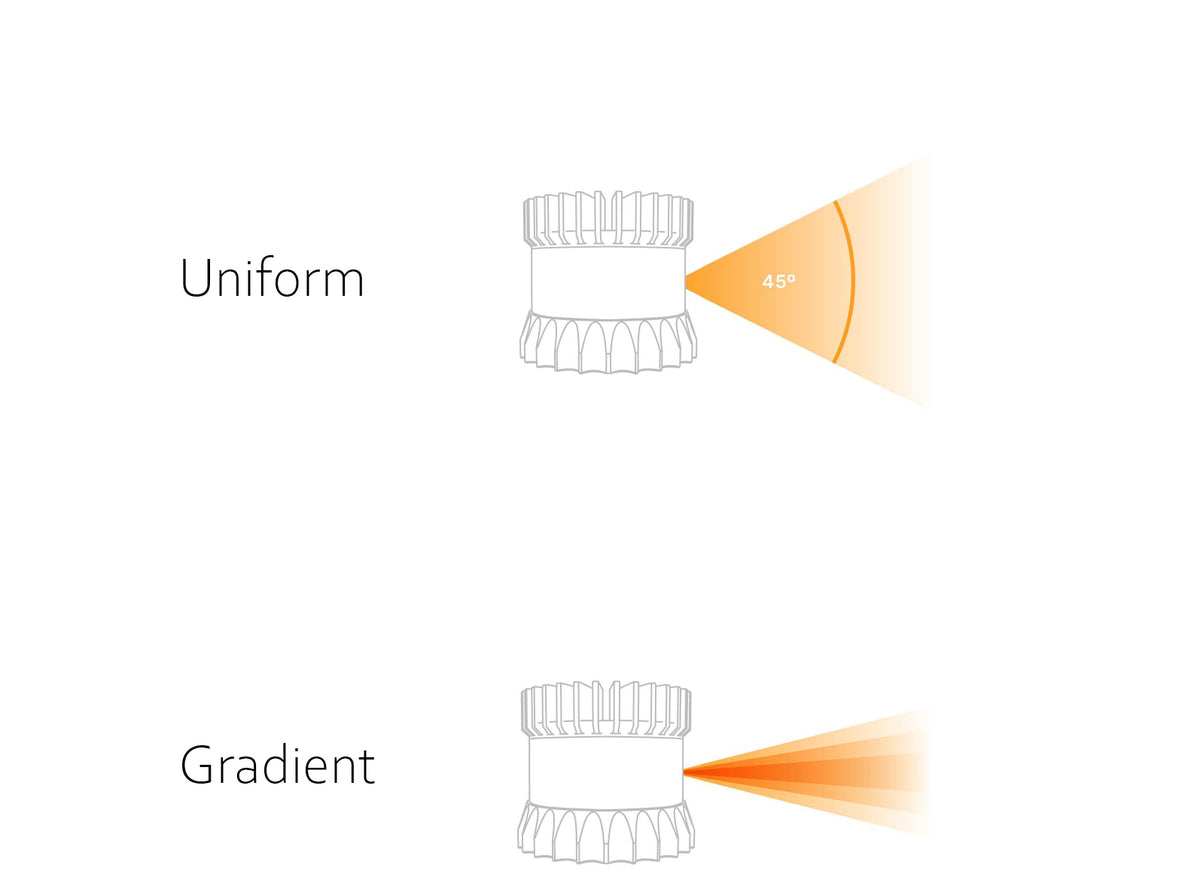

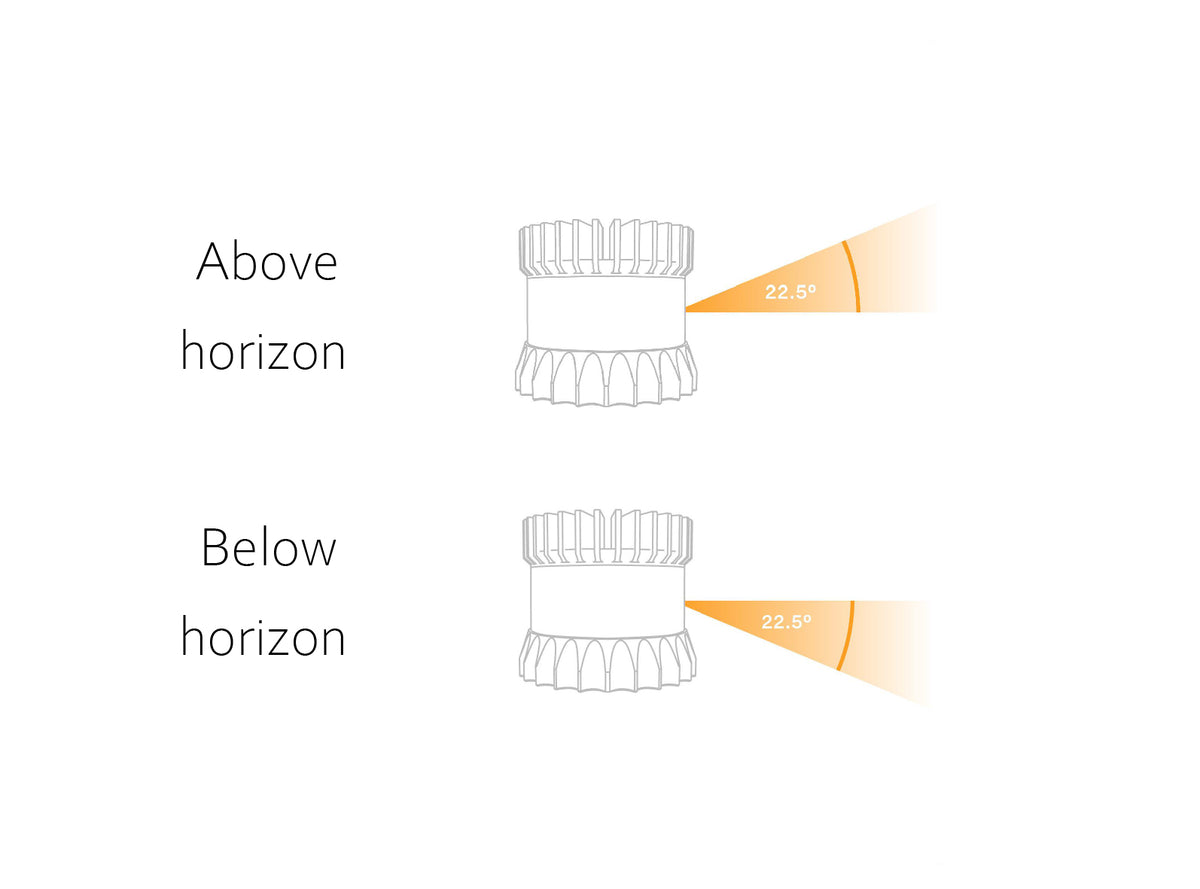

● VERTICAL FIELD OF VIEW
   45° (±22.5º)

● VERTICAL ANGULAR RESOLUTION
   0.35º – 2.8º (multiple options)
   OS1-128 : 0.35º

● PRECISION
   ±0.7 – 5 cm

● POINTS PER SECOND
   OS1-32 : 655,360
   OS1-64 : 1,310,720
   OS1-128 : 2,621,440

● ROTATION RATE
   10 or 20 Hz

● POWER DRAW
   14 – 20 W

● WEIGHT
   447 g

● INGRESS PROTECTION RATING
   IP68 (<1 m water submersion)
   IP69K (2000 psi power washing)
