Regular price

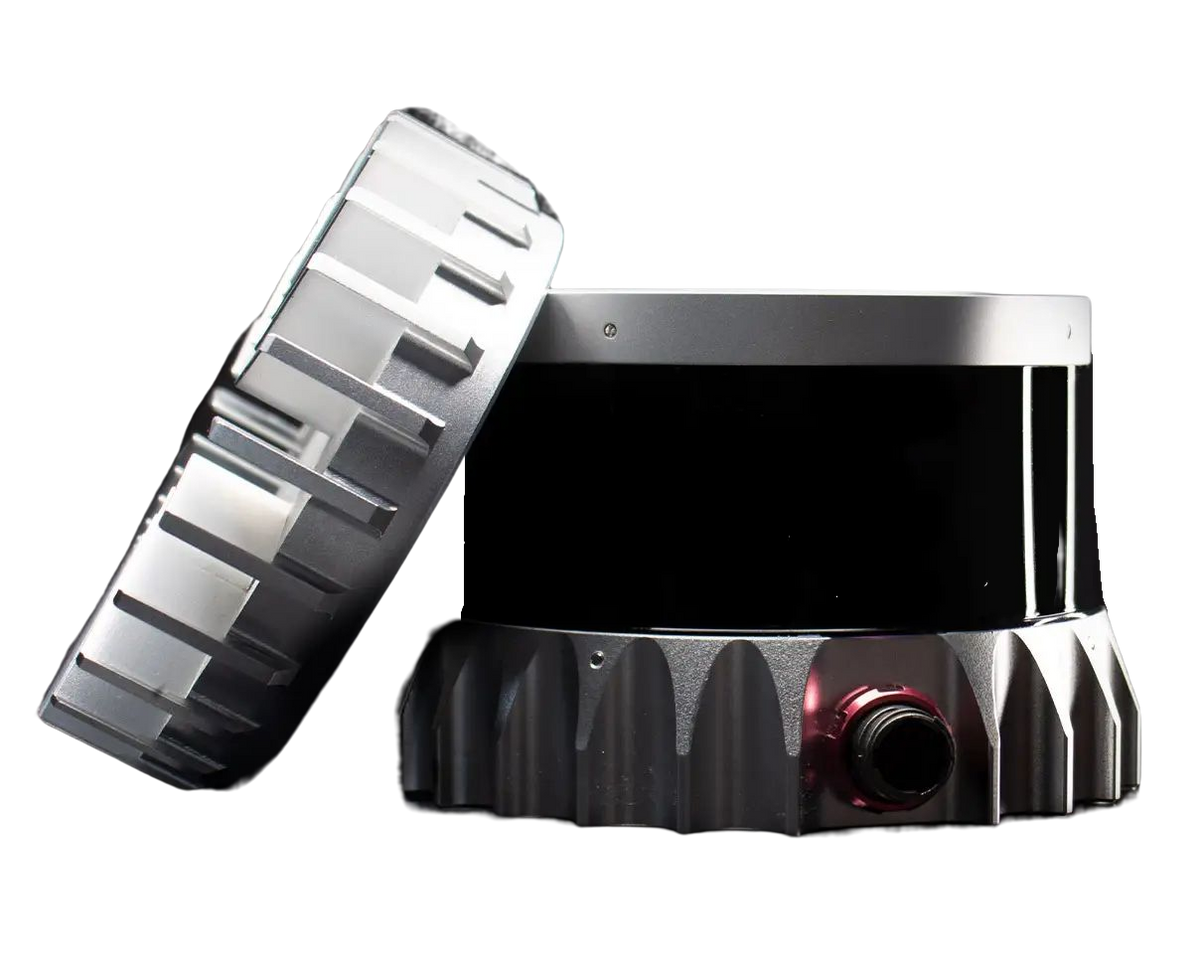

ULTRA-WIDE VIEW LIDAR SENSOR

Ultra-wide vertical field of view

● Enhance situational awareness with the OS0’s 90º field of view and minimum detection range of zero.

Situational Awareness

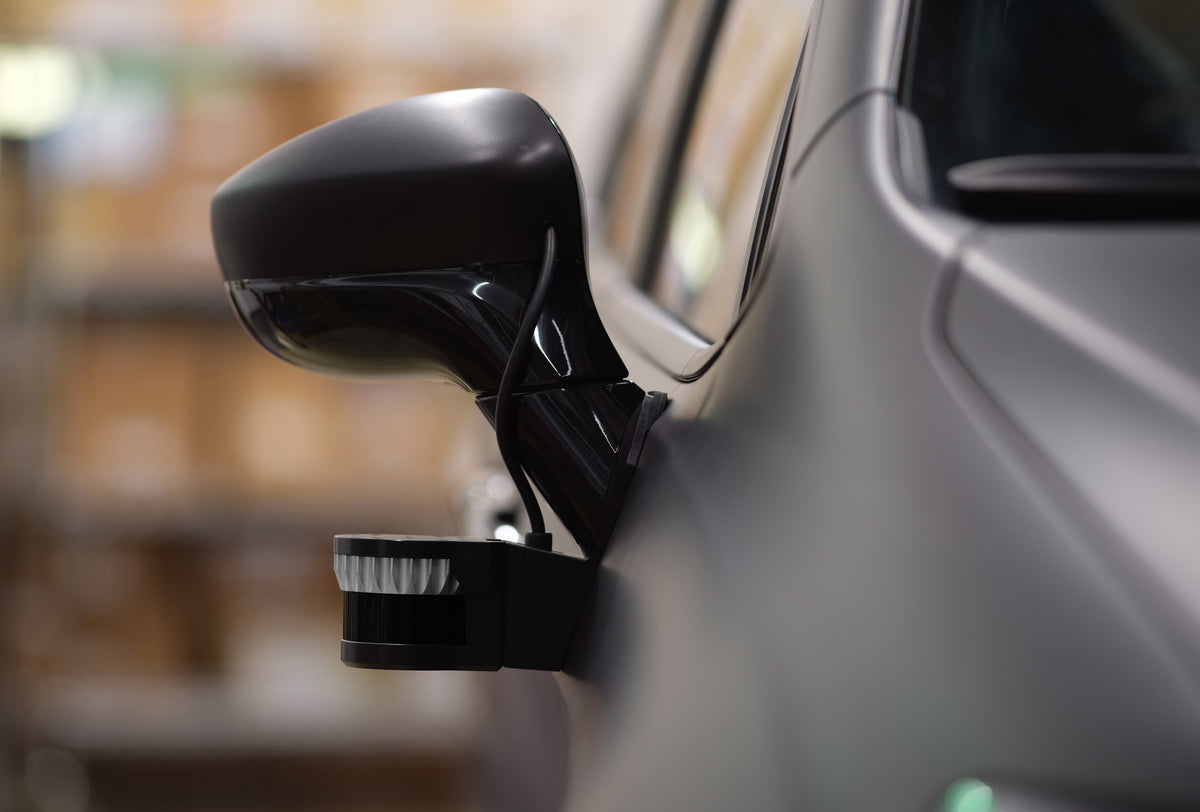

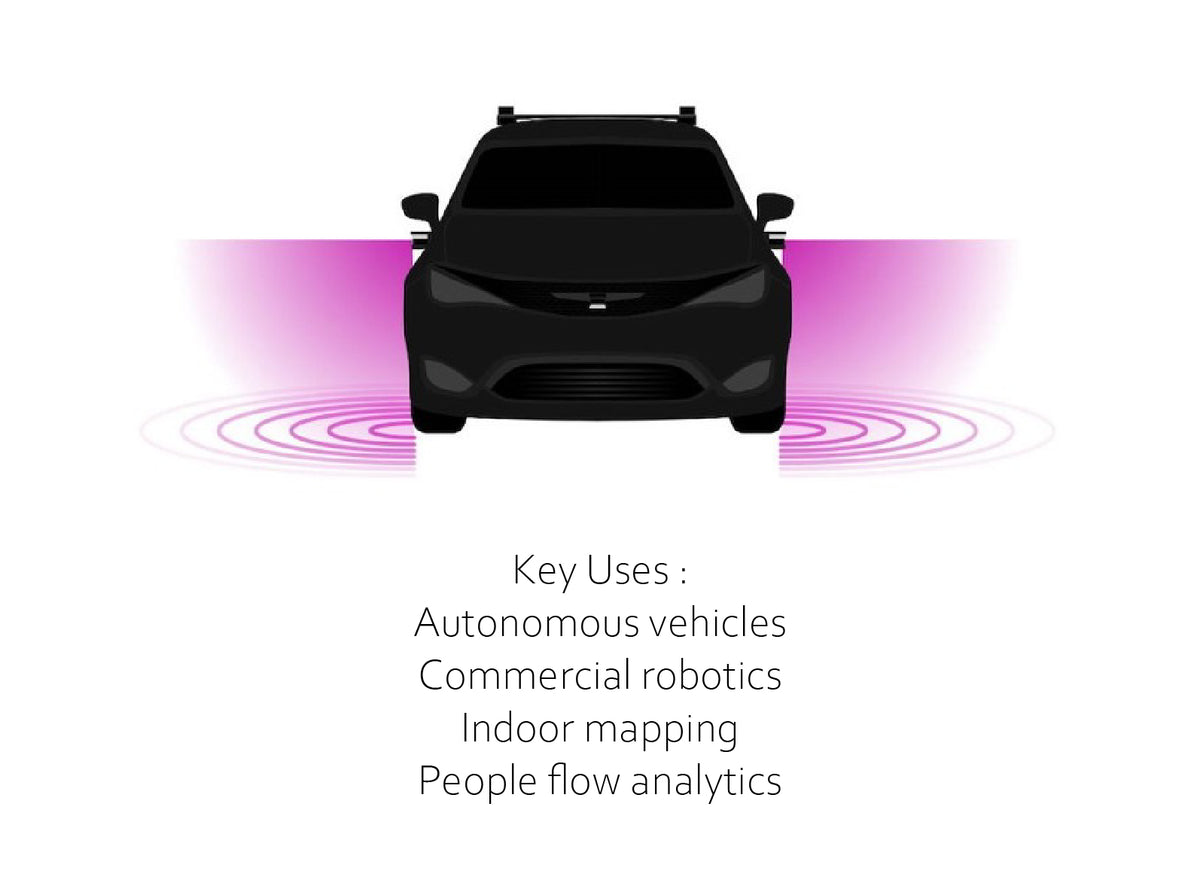

● Ensure complete spatial awareness of objects and obstacles in the immediate vicinity of your vehicle with the OS0’s 128 channel resolution, 90º vertical field-of-view, and 360º horizontal field-of-view.

People analytics

● With a 90º vertical field-of-view, the OS0 can be deployed for crosswalk or indoor installations to monitor and deliver enhanced analytics on pedestrians, bicyclists, and even small critters that other solutions often miss. Ouster lidar sensors collect no personally identifiable information and are privacy-safe in all scenarios.

Lightweight modular design

● Weighing only 447 g and featuring a modular cap design, this lidar sensor seamlessly integrates into your vehicle, drone, or robot.

Rugged and reliable

● Ouster lidar sensors are designed for 100,000 hours of continuous use. Water-proof, robust to shock and vibration, and temperature rated from -40 ºC to +60 ºC.


Features of the OS0

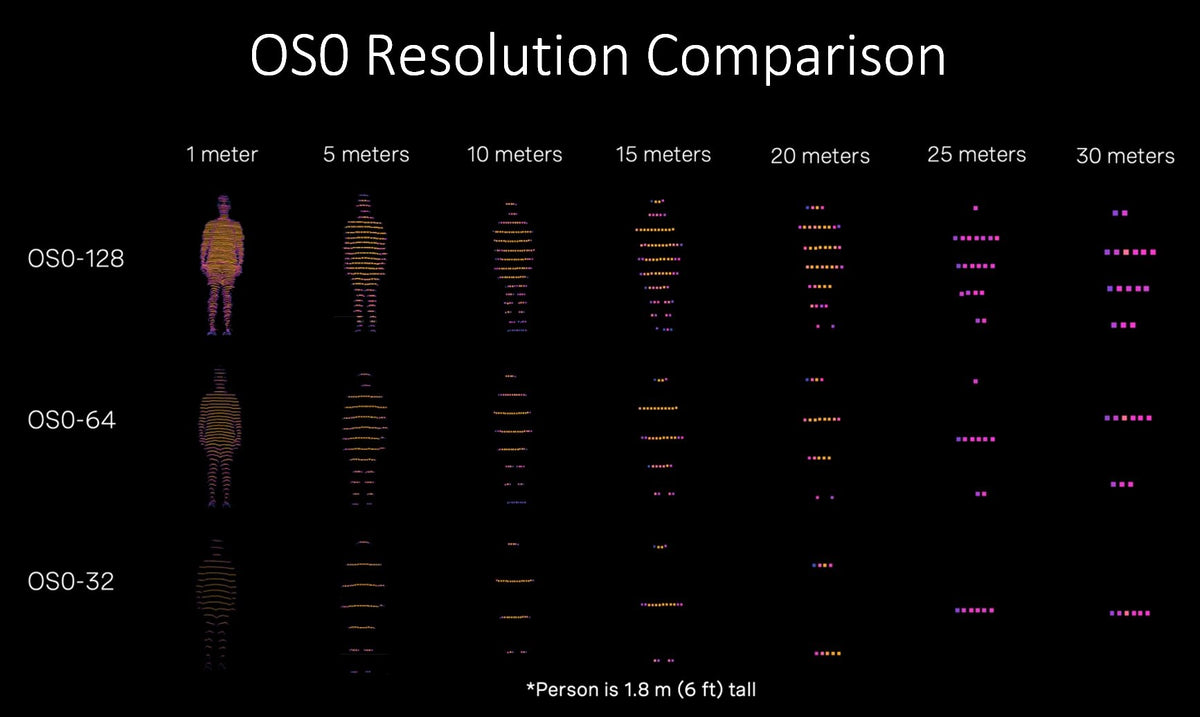

● VERTICAL RESOLUTION
   OS0-32 : 32 channels
   OS0-64 : 64 channels
   OS0-128 : 128 channels

● HORIZONTAL RESOLUTION
   512, 1024, 2048

● RANGE
   50m

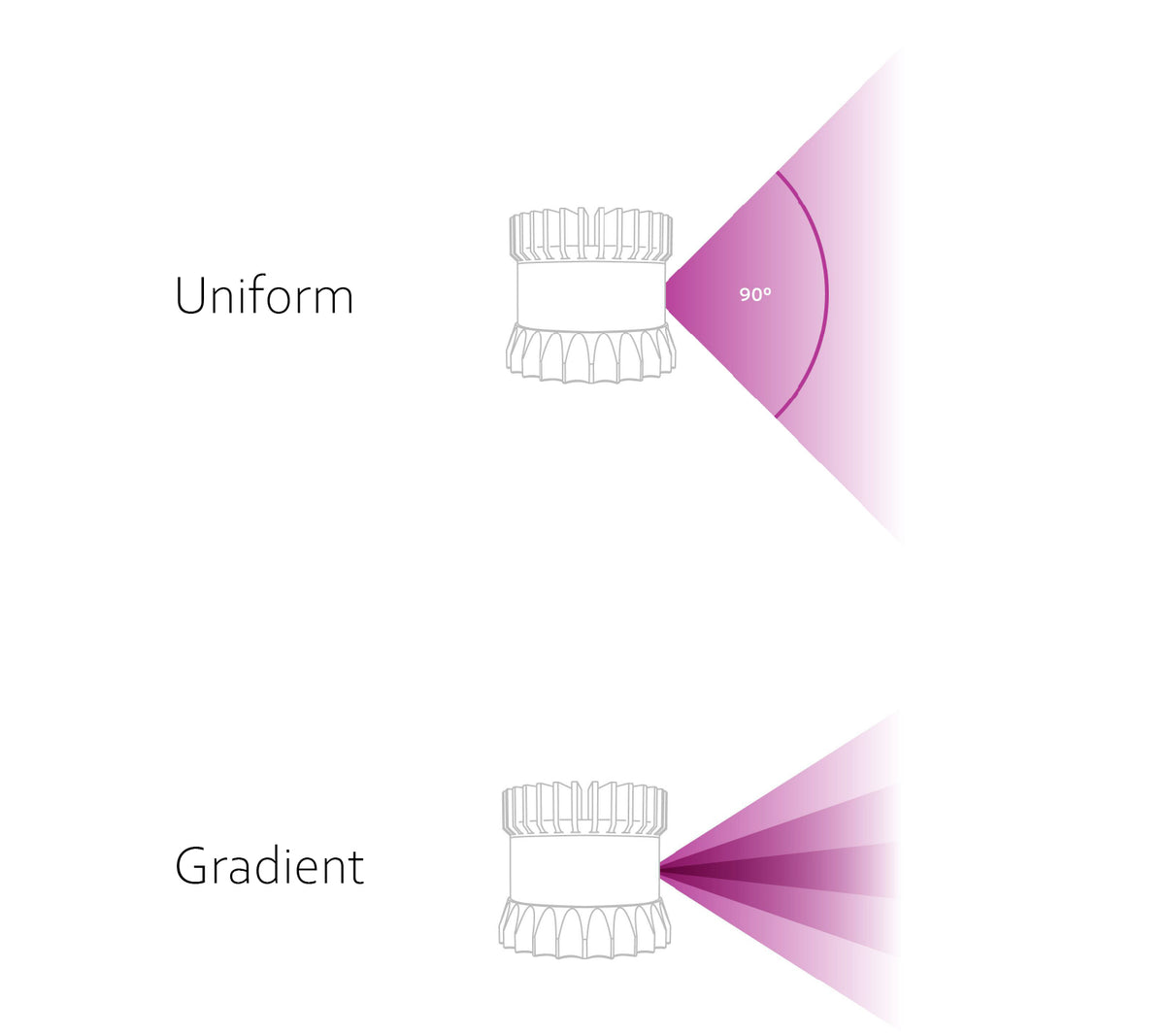

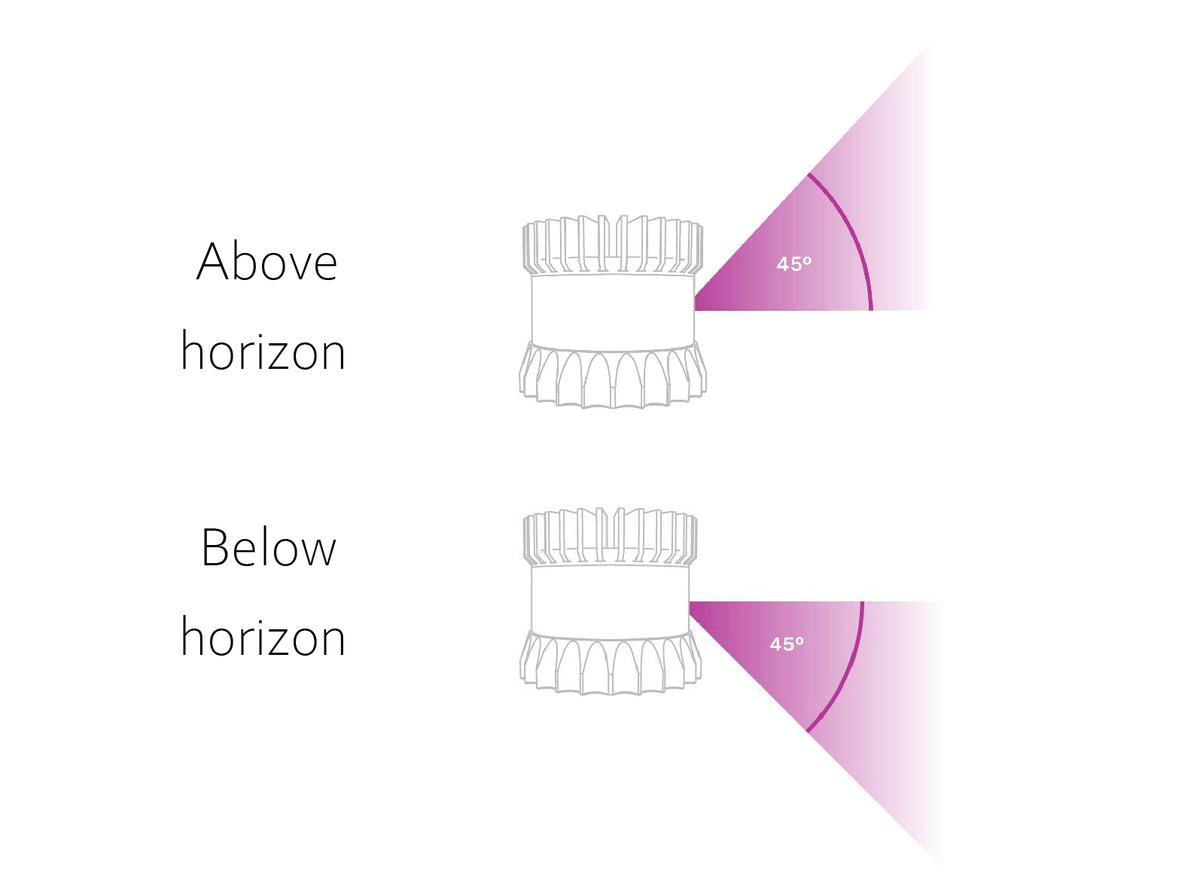

● VERTICAL FIELD OF VIEW
   90° (±45º)

● VERTICAL ANGULAR RESOLUTION
   0.7º – 5.5º (multiple options)
   OS0-128 : 0.7º

● PRECISION
   ±1.5 – 5 cm

● POINTS PER SECOND
   OS0-32 : 655,360
   OS0-64 : 1,310,720
   OS0-128 : 2,621,440

● ROTATION RATE
   10 or 20 Hz

● POWER DRAW
   14 – 20 W

● WEIGHT
   447 g

● INGRESS PROTECTION RATING
   IP68 (<1 m water submersion)
   IP69K (2000 psi power washing)
