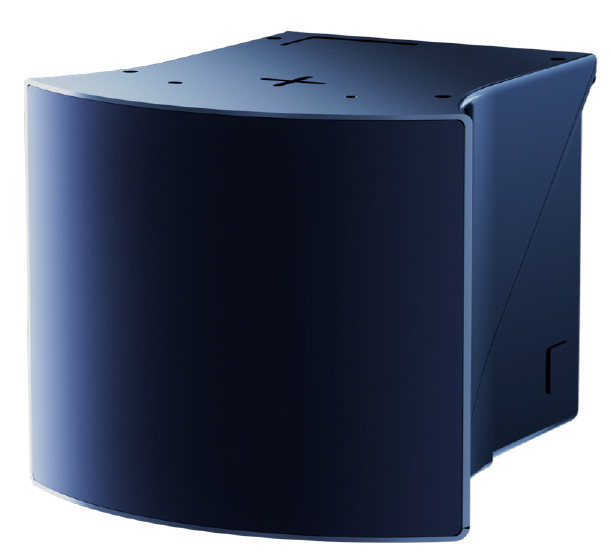

Robin W
Regular price
$0.00
Default Title -
$0.00 TWD
ULTRA-WIDE FOV LIDAR SENSOR
Feature
Ultra-wide field of view and distance capability from 0.1
m to 150 m
Ideal for blind spot monitoring by integration into the vehicle side
Automotive grade reliability and lifetime, using proven scanning architecture
Ideal for wide-angle monitoring of intersections and pedestrian venues at mid-distance
ranges
Specifications
LiDAR Performance
Laser Wavelength: 905 nm
FOV (H×V): 120° × 70°
Resolution: 923×192
Angular Resolution (H×V): 0.13° × 0.36°
Detection Range (Maximum): 250 m
Detection Range (Minimum): 0.1 m
Detection Precision: 3 cm @1σ
Detection Accuracy: ± 5 cm
Frame Rate: 10 to 20 FPS
Operational / Electrical
Operating Voltage: 9 to 34 V DC
Operating Temperature: -40 °C to +85 °C
Rated Power: 9 W
Operation Current: 0.75 A @12 V
Ingress Protection: IP67 (body), IP69K (window)
Mechanical
Dimensions (H × W × D): 85 mm × 102 mm × 105 mm
Weight: 850 g
