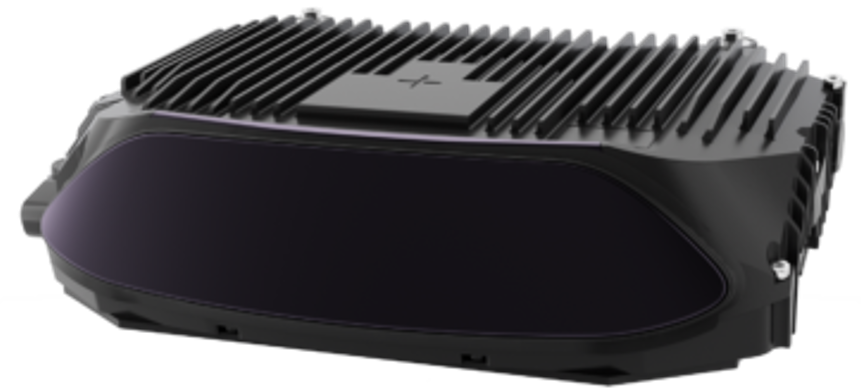

Falcon K

ULTRA-LONG RANGE LIDAR SENSOR

Feature

• 500m ultra-long detection range, image-grade ultra-high resolution
• Flexible and adjustable ROI
• 1550nm laser wavelength enables better eye-safety
• Greater environmental adaptability and longer product life
• Mass production of automotive-grade robust products is ready

Specifications

LiDAR Performance

• Laser Wavelength: 1550 nm
• FOV (H×V): 120° × 25°

• Angular Resolution (H×V): 0.09° × 0.08°
• Vertical Scanning Lines: 1520 lines/sec
• Detection Range (Maximum): 500 m (10% @ 250 m)
• Detection Range (Minimum): 1.5 m

• Detection Range Resolution: 0.5 cm
• Frame Rate: 10 FPS
• Laser Safety Class: Class 1 (IEC 60825-1)

Operational / Electrical

• Operating Voltage: 9 to 34 V DC
• Operating Temperature: -40 °C to +85 °C
• Power: 12 V / 30 W

• Ingress Protection: IP67 (body), IP69K (window)


Mechanical

• Dimensions (H × W × D): 58.9 mm × 228 mm × 149.6 mm
• Weight: 1750 g
