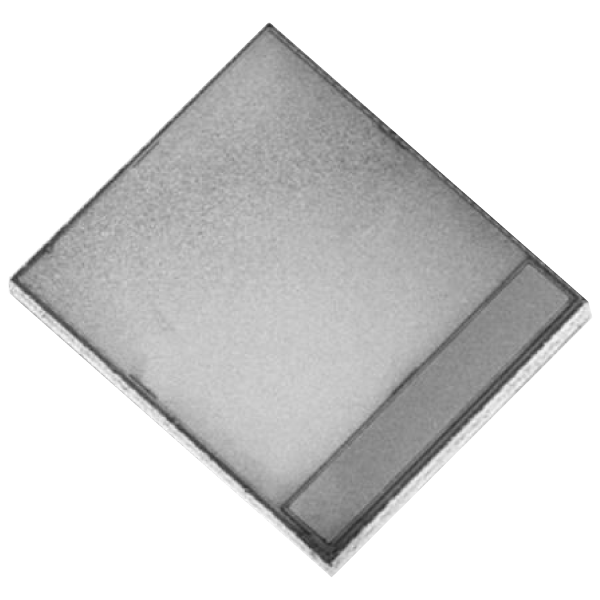

EZ1012-pbar

 FEATURES

• Lambertian Radiation Pattern
• Anode-up (p-up) p-bar design for an unobstructed emitting area and improved compatibility with phosphor sheet
• EZBright LED Technology, binned @ 350 mA

• – 450 nm – 580+ mW
• – 460 nm – 580+ mW
• – 470 nm – 520+ mW
• – 527 nm – 140+ mW

• Low Forward Voltage (Vf) – 3.1 V Typical at 350 mA
• Maximum DC Forward Current – 1500 mA
• Backside Metal versions for various attach methods:

• -A (AuSn) for use with Conductive Adhesives, Flux Eutectic Attach, Solder Paste & Solder Preforms
