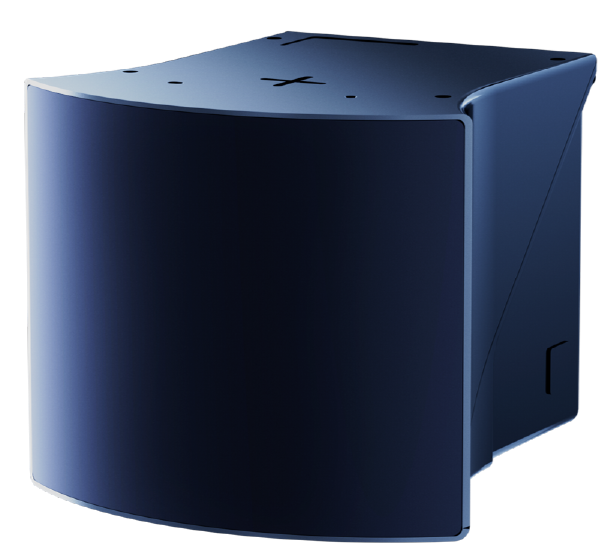

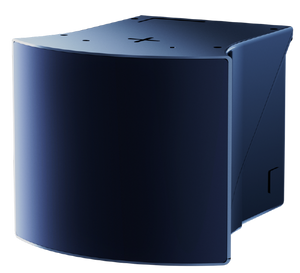

Robin W

ULTRA-WIDE FOV LIDAR SENSOR

Feature

• Ultra-wide field of view and distance capability from 0.1 m to 150 m
• Ideal for blind spot monitoring by integration into the vehicle side
• Automotive grade reliability and lifetime, using proven scanning architecture
• Ideal for wide-angle monitoring of intersections and pedestrian venues at mid-distance
  ranges

Specifications

LiDAR Performance

• Laser Wavelength: 905 nm
• FOV (H×V): 120° × 70°
• Resolution: 923×192
• Angular Resolution (H×V): 0.13° × 0.36°
• Detection Range (Maximum): 250 m
• Detection Range (Minimum): 0.1 m
• Detection Precision: 3 cm @1σ
• Detection Accuracy: ± 5 cm
• Frame Rate: 10 to 20 FPS

Operational / Electrical

• Operating Voltage: 9 to 34 V DC
• Operating Temperature: -40 °C to +85 °C
• Rated Power: 9 W
• Operation Current: 0.75 A @12 V
• Ingress Protection: IP67 (body), IP69K (window)


Mechanical

• Dimensions (H × W × D): 85 mm × 102 mm × 105 mm
• Weight: 850 g
